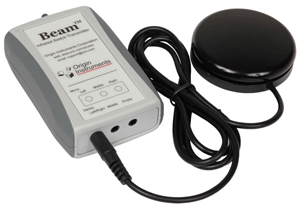

Beam allows a HeadMouse Extreme user to actuate the left, right and middle mouse buttons using adaptive switches without a direct connection to the HeadMouse. For a Swifty user, Beam sends up to three button events that Swifty interprets as mouse buttons, joystick, buttons or keyboard keys based on Swifty configuration.
Beam uses low power infrared light to communicate with the HeadMouse Extreme or Swifty much like a television remote control. A receiver is built-in to the HeadMouse Extreme and is located near one of the HeadMouse logos behind the small window. A receiver is also built into Swifty and is located under the window in the overlay.
Beam has internal batteries that will provide months of typical operation.
The switch jacks accept industry standard adaptive switches, which use 1/8-inch (3.5-mm) plugs. Single and dual switches with mono or stereo plugs may be used with Beam. For example, our Sip/Puff Switch may be used with one cable to Beam for left and right mouse buttons.
Beam is generally used by those with adaptive switches that wish to break the hard connection between the switch and the HeadMouse or Swifty. Often this is a power wheelchair owner that wants independence from an attendant for connecting and disconnecting his or her switch.
Features:
- 3 - standard 1/8-inch (3.5-mm) connectors for supporting up to 3 switches
- 3.75 by 2.5 by 1.1 inches (95-mm by 64-mm by 28-mm)
- Weighs less than 5-ounces (140 grams), including batteries
- Powered by 2 internal AA alkaline batteries
- 1 - year warranty
- Origin Instruments Quality, Reliability and Support
