PageBotTM for Amazon Kindle

Switch Accessible eReading

The PageBot line of Products has been Discontinued

Origin Instruments is pleased to deliver the first switch-based access solutions for Amazon's popular Kindle electronic book readers. Our PageBot for Kindle products enable the independent reading of books and other long form documents by people who cannot hold the Kindle or press its buttons.

PageBot combines a secure and adjustable mount, dual integrated actuators for the Kindle Next Page and Previous Page buttons, and a built-in intelligent drive circuit that can directly interface to a wide variety of adaptive switches. With PageBot, reading on the Amazon Kindle is accessible to people with motor disabilities that might result from birth defects, spinal cord injury, ALS, cerebral palsy, muscular dystrophy, spinal muscular atrophy, multiple sclerosis, stroke, arthritis, or repetitive strain injury. PageBot provides a much more compact, reliable, and cost effective solution for long-form reading than legacy mechanical page turners for paper books.

PageBot integrates multiple interfaces for adaptive switches that can suit the preferences and abilities of individual users. Standard mechanical adaptive switches with 3.5 mm microphone-style connectors, like the Origin Instruments Orby Switch, can be plugged in directly. Dual switches, like the Origin Instruments Sip/Puff Switch, can interface with a single stereo cable. PageBot is also compatible with a wide range of adaptive switches that are available from other assistive technology suppliers. In addition, a USB host interface is provided so that PageBot can be operated from the buttons of a wired or wireless USB mouse.

PageBot captures the Kindle in a grip of compliant foam that helps prevent scratches and enhances resistance to mechanical shocks. PageBot is delivered with an adjustable mechanical mounting arm that is articulated in four degrees of freedom. The mounting arm includes an integrated adjustable clamp that supports hard-mounting to table tops, shelves, or cylindrical rods of up to 36 mm diameter. PageBot also incorporates a standard 1/4-20 threaded insert for use with tripods or other special mounting hardware.

PageBot has very low quiescent power consumption and can be powered from the standard Kindle power adapter or from an optional rechargeable USB battery pack. PageBot includes an integrated Keep Awake mode with an automatic timer that can optionally prevent the Kindle from entering sleep after a period of inactivity. This feature eliminates the need to manipulate the Kindle power switch after a pause in reading.

PageBot is available in two different models. PageBot for Kindle Keyboard, and PageBot for Kindle 2 are available from the Origin Instruments online PageBot Store.

The Amazon Kindle and required adaptive switches are available separately.


Common Features for all PageBot Models

  • The Kindle is supported in a rugged mount with facing surfaces of compliant foam
  • Includes a four degree-of-freedom articulated arm with integrated clamp for mounting
  • Dual electro-mechanical actuators for the Kindle's Next Page and Previous Page buttons
  • Dual switch connectors for interface to adaptive switches with standard 3.5 mm plugs
  • Stereo input capability for interfacing dual switches with a single cable
  • Integrated USB host for adaptive switches that emulate a USB mouse
  • Integrated Keep Awake mode prevents the Kindle from entering sleep after a pause in reading
  • Micro-USB power input for compatibility with the standard Kindle power adapter
  • Optional rechargeable battery pack supports wireless portability and full on-the-go reading
  • PageBot exposes all Kindle features for manual access, including the Amazon Whispernet wireless antenna(s), the stereo headphone jack, the Kindle battery recharge port, and the Kindle's buttons and switches
  • The Kindle can be inserted or removed from PageBot for convenient sharing with friends and family members

PageBot for Kindle 2

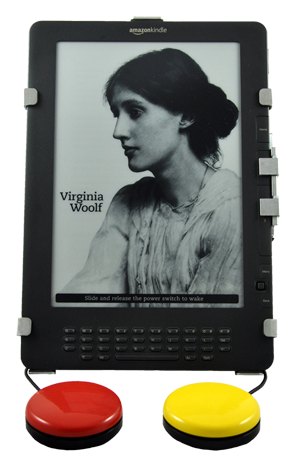

Front View of PageBot for Kindle 2

PageBot for Kindle 2 is shown from the front with an Amazon Kindle 2nd Generation installed and with one adaptive switch in use. This model of PageBot works with all models of Amazon’s 2nd Generation Kindle, including both the domestic wireless and international wireless models.

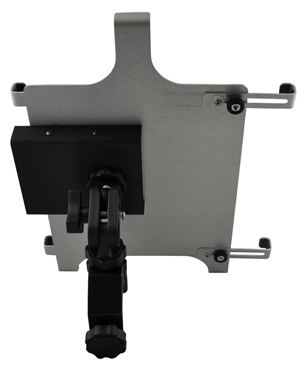

Rear View of PageBot for Kindle 2

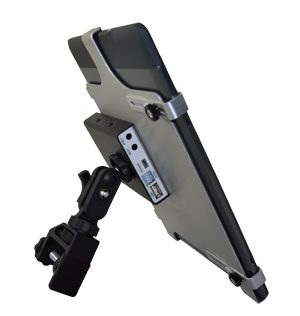

Side View of PageBot for Kindle 2

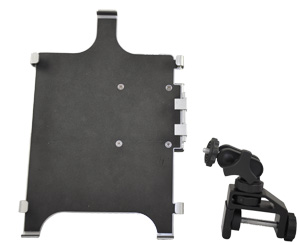

Components of PageBot for Kindle 2


PageBot for Kindle Keyboard

Front View of PageBot for Kindle Keyboard

PageBot for Kindle Keyboard is shown from the front with an Amazon Kindle 3rd Generation installed and with one adaptive switch in use. This model of PageBot works with all models of Amazon’s 3rd Generation Kindle, including the international wireless, WiFi, and “Special Offers” models.

Rear View of PageBot for Kindle Keyboard

Side View of PageBot for Kindle Keyboard

Components of PageBot for Kindle Keyboard

How to Purchase

PageBot for Kindle Keyboard and red Orby Switch

PageBot and adaptive swtches are available today from our PageBot Store

Amazon Kindle

Amazon's Kindle is the leading ereader for electronic books. Kindle is available in several versions.

Complete information at Amazon.com
